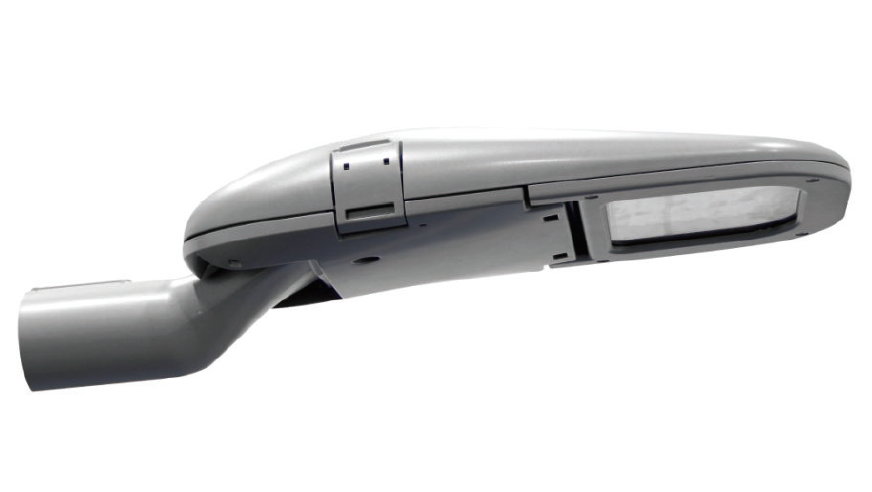

LXA7-S LED Street Light

LXA7-S

• Detachable connect base, easy to maintenance.·
• Avariety of power drivers are availabe for option.
• Lightning protection device, guarantee for long driver life.
• Modular LED lens design, various light distribution modes.
• Power off protection device for safety.

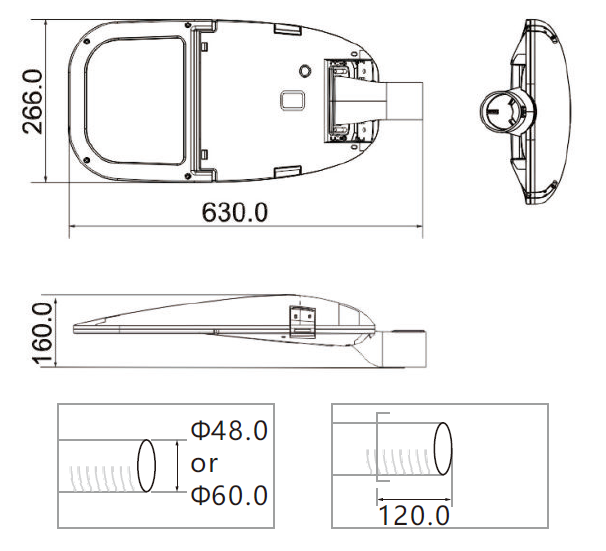

Product Dimension

Product Specification

Product Name	LXA7-S-20	LXA7-S-30	LXA7-S-40
LED Quantity	18pcs	18pcs	18pcs
Rated Power	20W	30W	40W
Input Voltage	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz
Light Color	3000/4000K	3000/4000K	3000/4000K
Luminous Flux	2139/2300 lm	3039/3300 lm	3906/4200 Im
Power Factor	>0.9	>0.9	>0.9
Installation Height	3-6m	3-6m	3-6m
Installation Pipe Diameter	Φ48/60mm	Φ48/60mm	Φ48/60mm
Protection Grade	IP66	IP66	IP66
LED Lifetime	>70000h	>70000h	>70000h
Net Weight	6.25kg	6.25kg	6.25kg
Gross Weight	7.24kg	7.24kg	7.24kg
Packing Size	710X345X165mm	710X345X165mm	710X345X165mm

Product Name	LXA7-S-30	LXA7-S-40	LXA7-S-60
LED Quantity	24pcs	24pcs	24pcs
Rated Power	30W	40W	60W
Input Voltage	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz
Light Color	3000/4000K	3000/4000K	3000/4000K
Luminous Flux	3320/3570 Im	4166/4480 Im	5803/6240 Im
Power Factor	>0.9	>0.9	>0.9
Installation Height	3-6m	3-6m	3-6m
Installation Pipe Diameter	Φ48/60mm	Φ48/60mm	Φ48/60mm
Protection Grade	IP66	IP66	IP66
LED Lifetime	>70000h	>70000h	>70000h
Net Weight	6.25kg	6.25kg	6.25kg
Gross Weight	7.24kg	7.24kg	7.24kg
Packing Size	710X345X165mm	710X345X165mm	710X345X165mm

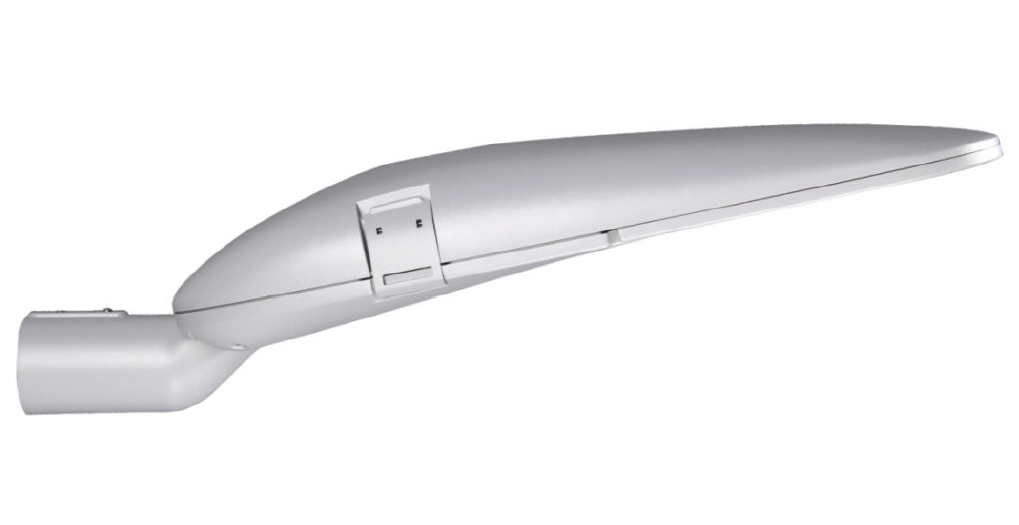

LXA7-M LED Street Light

LXA7-M

• Detachable connect base, easy to maintenance.·
• Avariety of power drivers are availabe for option.
• Lightning protection device, guarantee for long driver life.
• Modular LED lens design, various light distribution modes.
• Power off protection device for safety.

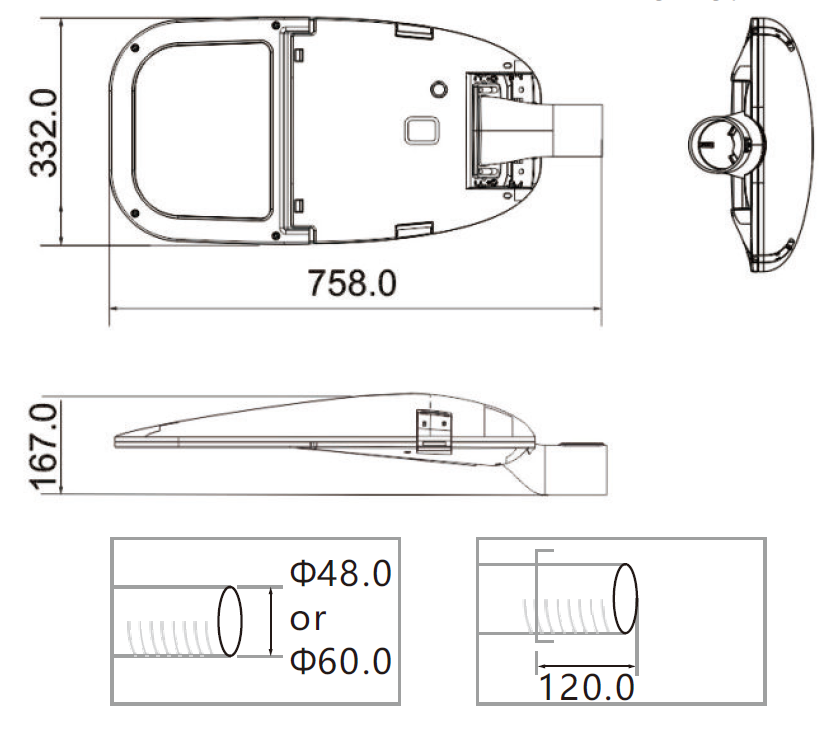

Product Dimension

Product Specification

Product Name	LXA7-M-60	LXA7-M-90	LXA7-M-120
LED Quantity	54pcs	54pcs	54pcs
Rated Power	60W	90W	120W
Input Voltage	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz
Light Color	3000/4000K	3000/4000K	3000/4000K
Luminous Flux	6807/7320 Im	9625/10350 lm	12276/13200 lm
Power Factor	>0.9	>0.9	>0.9
Installation Height	6-8m	8-10m	8-10m
Installation Pipe Diameter	Φ48/60mm	Φ48/60mm	Φ48/60mm
Protection Grade	IP66	IP66	IP66
LED Lifetime	>70000h	>70000h	>70000h
Net Weight	8.56kg	8.56kg	8.56kg
Gross Weight	10.1kg	10.1kg	10.1kg
Packing Size	800X380X155mm	800X380X155mm	800X380X155mm

Product Name	LXA7-M-120	LXA7-M-150
LED Quantity	72pcs	72pcs
Rated Power	120W	150W
Input Voltage	AC100-277V 50/60Hz	AC100-277V 50/60Hz
Light Color	3000/4000K	3000/4000K
Luminous Flux	13057/14040 Im	15345/16500 Im
Power Factor	>0.9	>0.9
Installation Height	8-10m	8-10m
Installation Pipe Diameter	Φ48/60mm	Φ48/60mm
Protection Grade	IP66	IP66
LED Lifetime	>70000h	>70000h
Net Weight	8.56kg	8.56kg
Gross Weight	10.1kg	10.1kg
Packing Size	800X380X155mm	800X380X155mm

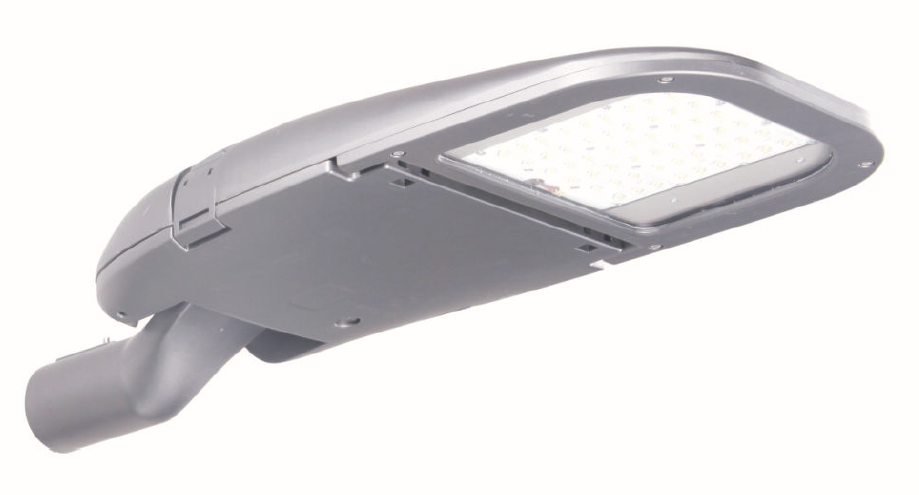

LXA7-L LED Street Light

LXA7-L

• Detachable connect base, easy to maintenance.·
• Avariety of power drivers are availabe for option.
• Lightning protection device, guarantee for long driver life.
• Modular LED lens design, various light distribution modes.
• Power off protection device for safety.

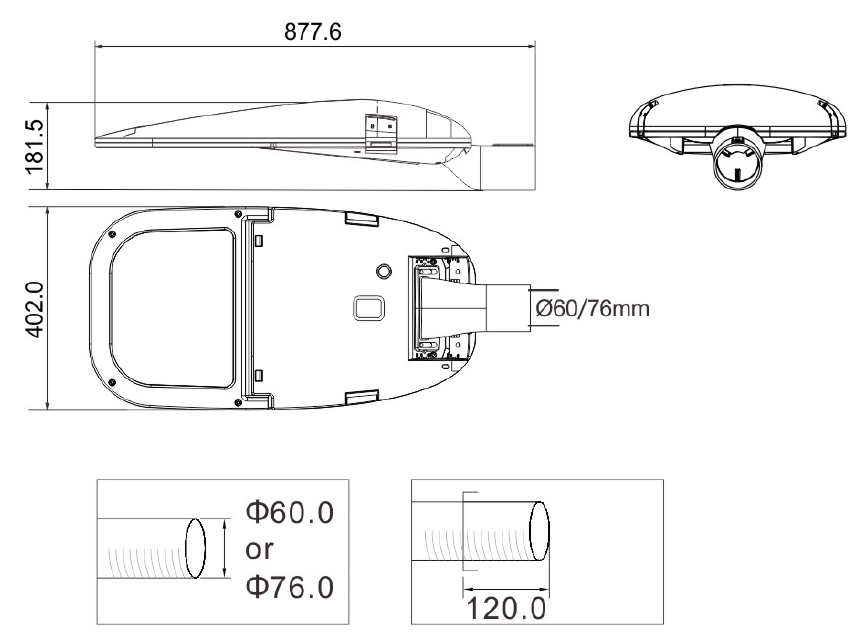

Product Dimension

Product Specification

Product Name	LXA7-L-160	LXA7-L-200
LED Quantity	96pcs	96pcs
Rated Power	160W	200W
Input Voltage	AC100-277V 50/60Hz	AC100-277V 50/60Hz
Light Color	3000/4000K	3000/4000K
Luminous Flux	17260/18560 Im	20460/22000 Im
Power Factor	>0.9	>0.9
Installation Height	10-12m	10-12m
Installation Pipe Diameter	Φ60/76mm	Φ60/76mm
Protection Grade	IP66	IP66
LED Lifetime	>70000h	>70000h
Net Weight	12.8kg	12.8kg
Gross Weight	15.4kg	15.4kg
Packing Size	1010x449x193mm	1010x449x193mm
