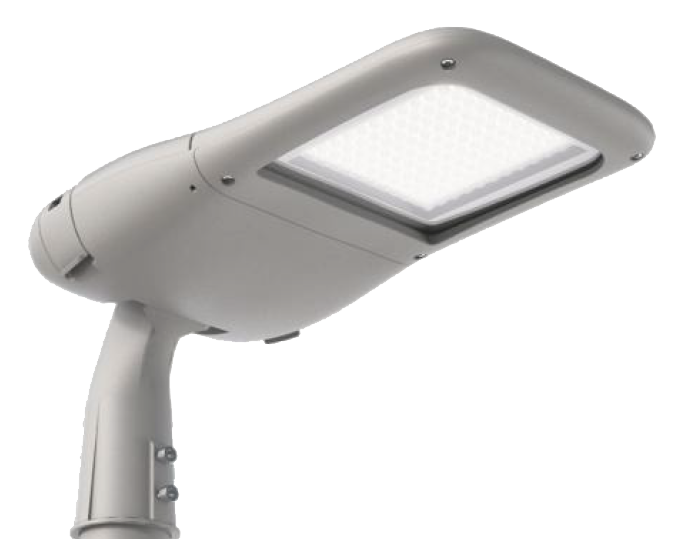

LXA5 LED Street Light
LXA5
- Save 50%+ energy with top-tier LED chips, halving power use while ensuring brightness.
- Premium LEDs deliver optimal light and durability for diverse applications.
- Adapter between lamp and pole supports horizontal and vertical installation.
- Tool-free access simplifies maintenance and part replacement.
- 5-year warranty ensures reliable, long-lasting performance.

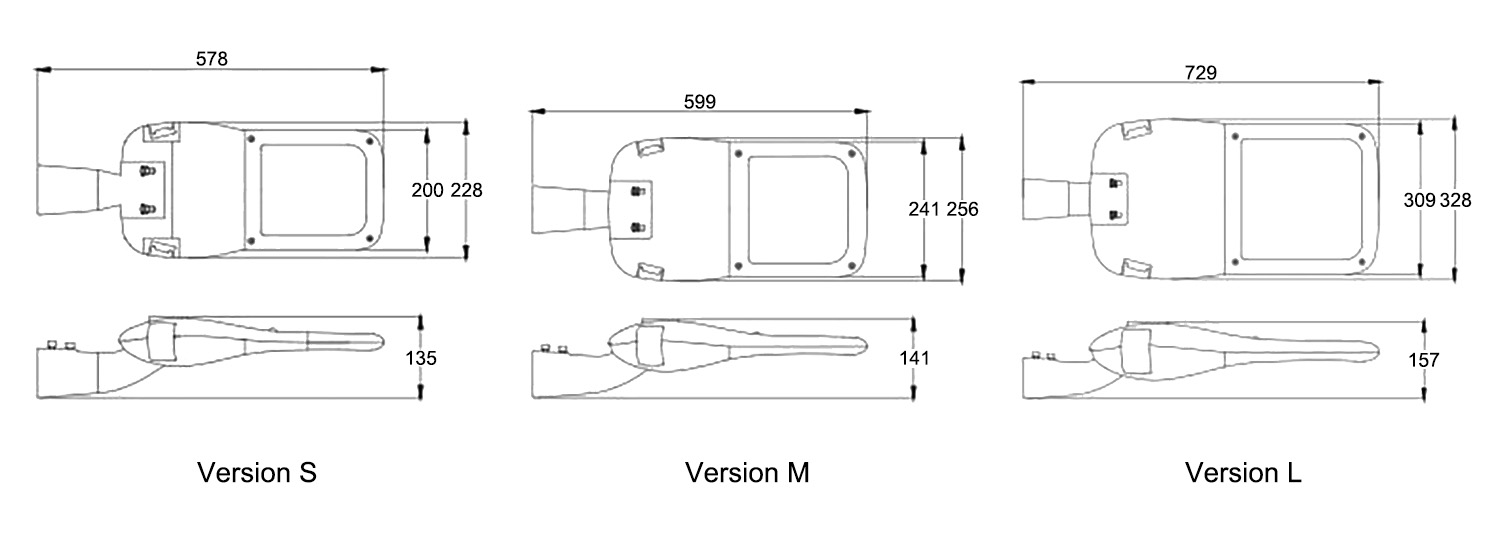

Product Dimension
Product Specification
| Product Name | LXA5-S-20 | LXA5-S-30 | LXA5-S-50 | LXA5-S-60 | LXA5-S-80 |
|---|---|---|---|---|---|
|
Rated Power |
20W |
30W |
50W |
60W |
80W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Light Color |
3000/4000/5700K |
3000/4000/5700K |
3000/4000/5700K |
3000/4000/5700K |
3000/4000/5700K |
|
Luminous Flux |
3000 Im |
4500 Im |
7000 Im |
8400 Im |
10400 Im |
|
Power Factor |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
|
THD |
<15 |
<15 |
<15 |
<15 |
<15 |
|
SPD |
10KV/20KV |
10KV/20KV |
10KV/20KV |
10KV/20KV |
10KV/20KV |
|

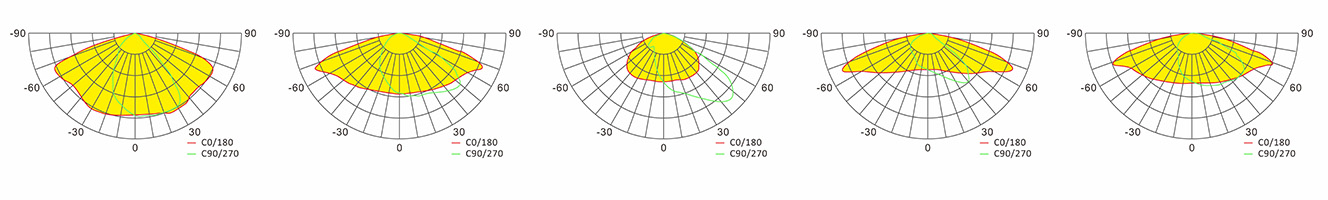

Optics |
Type II, Type III |
Type II, Type III |
Type II, Type III |
Type II, Type III |
Type II, Type III |
|
Protection Grade |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
|
LED Lifetime |
>70000h |
>70000h |
>70000h |
>70000h |
>70000h |
|
Net Weight |
3.2kg |
3.2kg |
3.2kg |
3.2kg |
3.2kg |
|
Gross Weight |
4.2kg |
4.2kg |
4.2kg |
4.2kg |
4.2kg |
|
Packing Size |
598X258X175mm |
598X258X175mm |
598X258X175mm |
598X258X175mm |
598X258X175mm |
| Product Name | LXA5-M-80 | LXA5-M-90 | LXA5-M-120 | LXA5-M-150 |
|---|---|---|---|---|
|
Rated Power |
80W |
90W |
120W |
150W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Light Color |
3000/4000/5700K |
3000/4000/5700K |
3000/4000/5700K |
3000/4000/5700K |
|
Luminous Flux |
12000 Im |
13500 Im |
16800 Im |
19500 Im |
|
Power Factor |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
|
THD |
<15 |
<15 |
<15 |
<15 |
|
SPD |
10KV/20KV |
10KV/20KV |
10KV/20KV |
10KV/20KV |
|
Optics |
Type II, Type III |
Type II, Type III |
Type II, Type III |
Type II, Type III |
|
Protection Grade |
IP66 |
IP66 |
IP66 |
IP66 |
|
LED Lifetime |
>70000h |
>70000h |
>70000h |
>70000h |
|
Net Weight |
4.2kg |
4.2kg |
4.2kg |
4.2kg |
|
Gross Weight |
5.2kg |
5.2kg |
5.2kg |
5.2kg |
|
Packing Size |
655X295X190mm |
655X295X190mm |
655X295X190mm |
655X295X190mm |
| Product Name | LXA5-L-150 | LXA5-L-180 | LXA5-L-200 | LXA5-L-240 |
|---|---|---|---|---|
|
Rated Power |
150W |
180W |
200W |
240W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Light Color |
3000/4000/5700K |
3000/4000/5700K |
3000/4000/5700K |
3000/4000/5700K |
|
Luminous Flux |
22500 Im |
25200 Im |
28000 Im |
31200 Im |
|
Power Factor |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
|
THD |
<15 |
<15 |
<15 |
<15 |
|
SPD |
10KV/20KV |
10KV/20KV |
10KV/20KV |
10KV/20KV |
|
Optics |
Type II, Type III |
Type II, Type III |
Type II, Type III |
Type II, Type III |
|
Protection Grade |
IP66 |
IP66 |
IP66 |
IP66 |
|
LED Lifetime |
>70000h |
>70000h |
>70000h |
>70000h |
|
Net Weight |
7.2kg |
7.2kg |
7.2kg |
7.2kg |
|
Gross Weight |
8.2kg |
8.2kg |
8.2kg |
8.2kg |
|
Packing Size |
780X385X190mm |
780X385X190mm |
780X385X190mm |
780X385X190mm |
