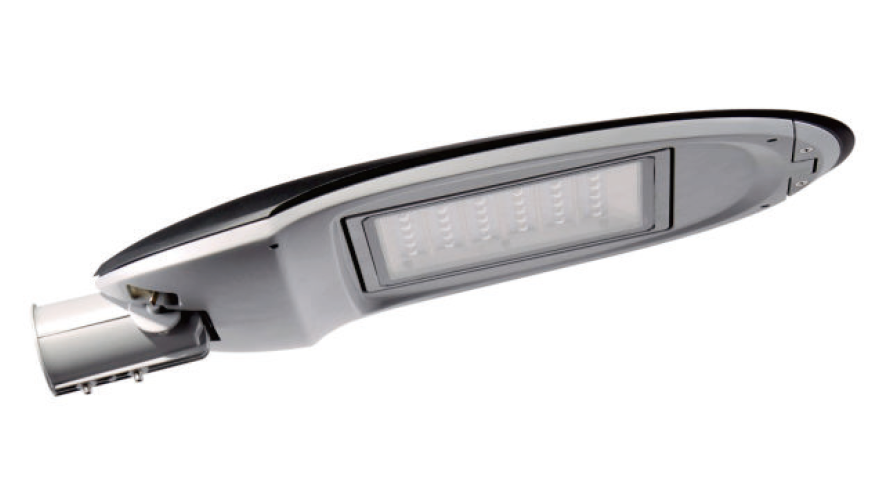

LXA3-M LED Street Light
LXA3-M
- Featured with streamline shape, self-clean ability which guarantee LED light keep clean.
- Surface with powder coating and anti-corrosion treatment which is firm and durable.
- Toggle clip design, tool free to open LED light which is easy and convenient.
- Outage protection design, it will auto cut off electricity when open LED light cover which is safe.
- Side air radiation design, good for LED light heat dissipation which guarantee the lamp lifespan.

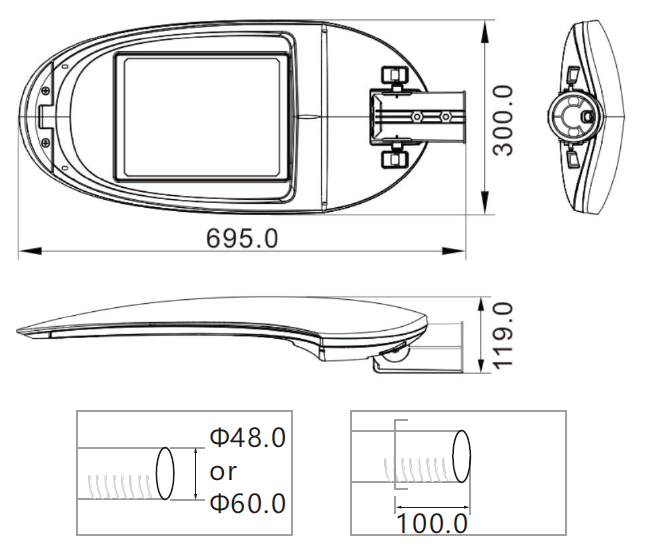

Product Dimension
Product Specification
| Product Name | LXA3-M-30 | LXA3-M-60 | LXA3-M-90 | LXA3-M-120 |
|---|---|---|---|---|
|
LED Quantity |
18pcs |
36pcs |
36pcs |
54pcs |
|
Rated Power |
30W |
60W |
90W |
120W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Light Color |
3000/4000K |
3000/4000K |
3000/4000K |
3000/4000K |
|
Luminous Flux |
3069/3300 Im |
6305/6780 lm |
8955/9630 lm |
12276/13200 lm |
|
Power Factor |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
|
Installation Height |
4-6m |
6-8m |
7-9m |
8-10m |
|
Installation Pipe Diameter |
Φ48/60mm |
Φ48/60mm |
Φ48/60mm |
Φ48/60mm |
|
Protection Grade |
IP65 |
IP65 |
IP65 |
IP65 |
|
LED Lifetime |
>70000h |
>70000h |
>70000h |
>70000h |
|
Net Weight |
6.8kg |
6.8kg |
6.8kg |
6.8kg |
|
Gross Weight |
7.8kg |
7.8kg |
7.8kg |
7.8kg |
|
Packing Size |
785X390X215mm |
785X390X215mm |
785X390X215mm |
785X390X215mm |

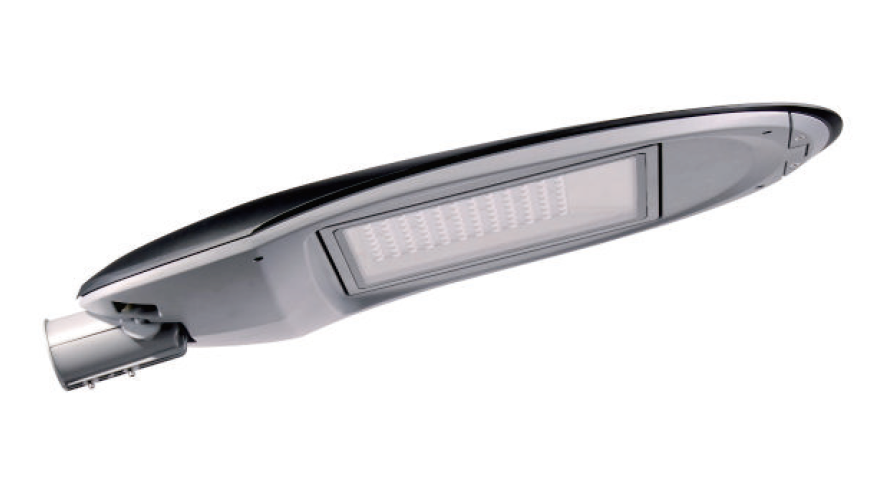

LXA3-L LED Street Light
LXA3-L
- Featured with streamline shape, self-clean ability which guarantee LED light keep clean.
- Surface with powder coating and anti-corrosion treatment which is firm and durable.
- Toggle clip design, tool free to open LED light which is easy and convenient.
- Outage protection design, it will auto cut off electricity when open LED light cover which is safe.
- Side air radiation design, good for LED light heat dissipation which guarantee the lamp lifespan.

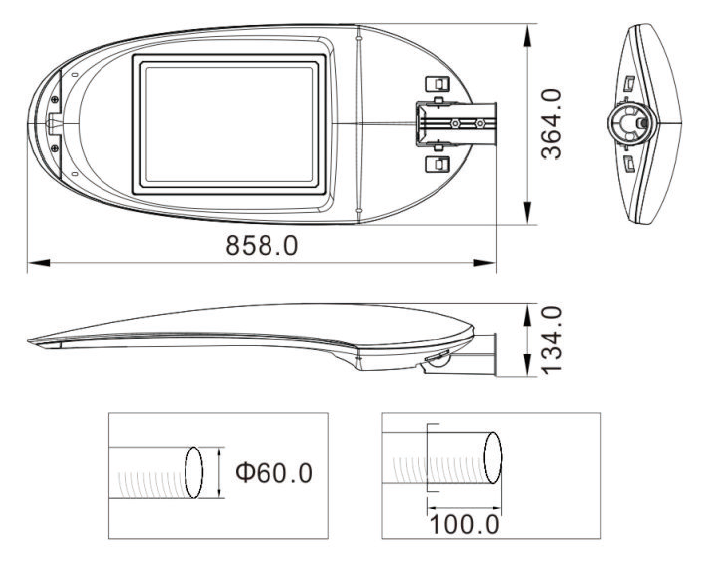

Product Dimension
Product Specification
| Product Name | LXA3-L-90 | LXA3-L-120 | LXA3-L-150 |
|---|---|---|---|
|
LED Quantity |
48pcs |
64pcs |
96pcs |
|
Rated Power |
90W |
120W |
150W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Light Color |
3000/4000K |
3000/4000K |
3000/4000K |
|
Luminous Flux |
9374/10080 lm |
12499/13440 Im |
16182/17400 lm |
|
Power Factor |
>0.9 |
>0.9 |
>0.9 |
|
Installation Height |
7-9m |
8-10m |
10-12m |
|
Installation Pipe Diameter |
Φ60mm |
Φ60mm |
Φ60mm |
|
Protection Grade |
IP65 |
IP65 |
IP65 |
|
LED Lifetime |
>70000h |
>70000h |
>70000h |
|
Net Weight |
11kg |
11kg |
11kg |
|
Gross Weight |
12kg |
12kg |
12kg |
|
Packing Size |
970x455x220mm |
970x455x220mm |
970x455x220mm |
