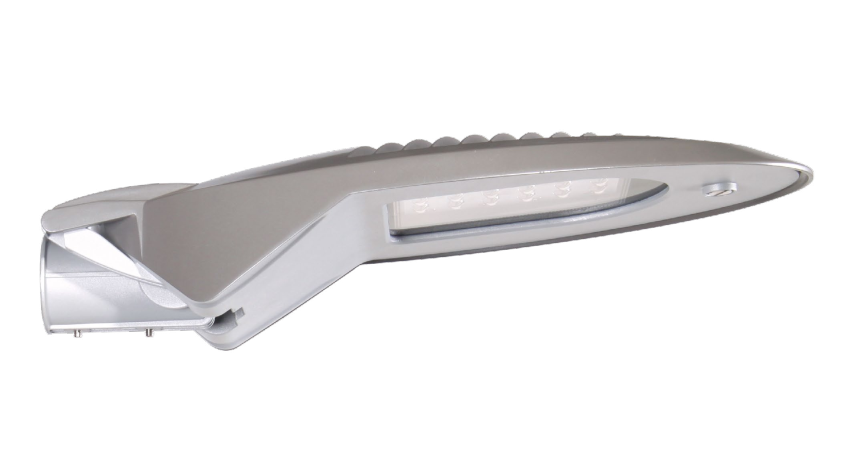

LXA2-S LED Street Light
LXA2-S
- Excellent heat dissipation, LED street light products with optical and electrical performance.
- Die-casting aluminum lamp body with surface electrostatic spray and anti-corrosion treatment.
- Diffuser uses 4.00 mm super white toughened glass.
- Humanized design concept, easy installation and maintenance.

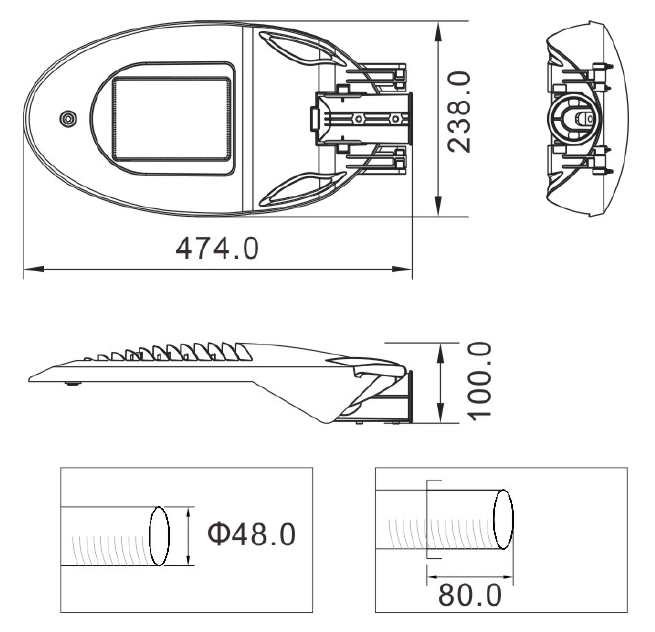

Product Dimension
Product Specification
| Product Name | LXA2-S-20 | LXA2-S-30 | LXA2-S-40 |
|---|---|---|---|
|
LED Quantity |
18pcs |
18pcs |
18pcs |
|
Rated Power |
20W |
30W |
40W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Light Color |
3000/4000K |
3000/4000K |
3000/4000K |
|
Luminous Flux |
2046/2200 Im |
2957/3180 Im |
3757/4040 Im |
|
Power Factor |
>0.9 |
>0.9 |
>0.9 |
|
Installation Height |
3-6m |
3-6m |
3-6m |
|
Installation Pipe Diameter |
Φ48mm |
Φ48mm |
Φ48mm |
|
Protection Grade |
IP65 |
IP65 |
IP65 |
|
LED Lifetime |
>70000h |
>70000h |
>70000h |
|
Net Weight |
2.75kg |
2.95kg |
2.95kg |
|
Gross Weight |
3.5kg |
3.7kg |
3.7kg |
|
Packing Size |
565X315X185mm |
565X315X185mm |
565X315X185mm |

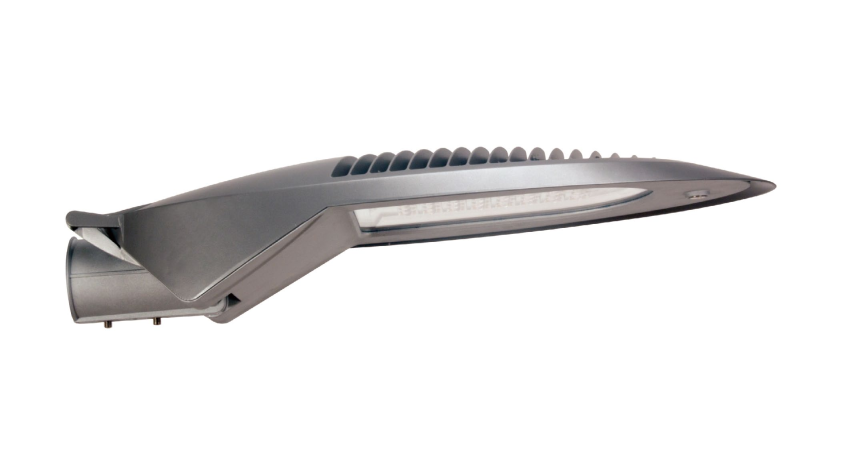

LXA2-M LED Street Light
LXA2-M
- Excellent heat dissipation, LED street light products with optical and electrical performance.
- Die-casting aluminum lamp body with surface electrostatic spray and anti-corrosion treatment.
- Diffuser uses 4.00 mm super white toughened glass.
- Humanized design concept, easy installation and maintenance.

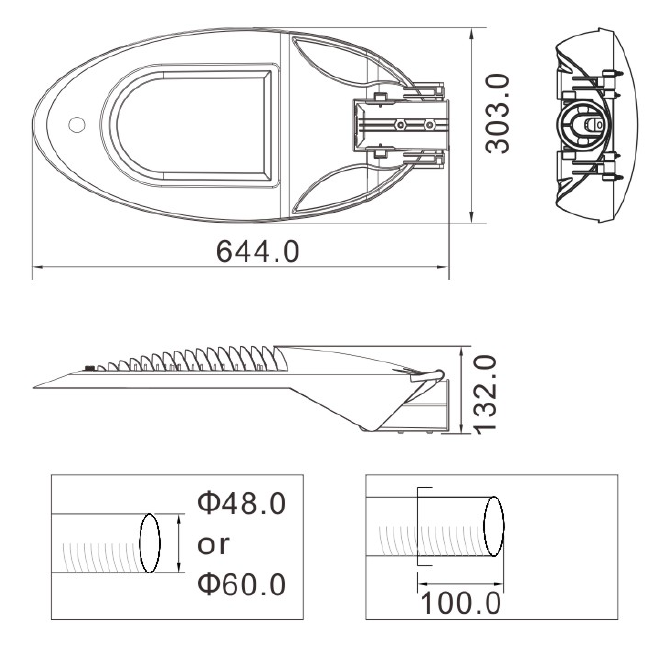

Product Dimension
Product Specification
| Product Name | LXA2-M-30 | LXA2-M-40 | LXA2-M-60 | LXA2-M-90 | LXA2-M-120 |
|---|---|---|---|---|---|
|
LED Quantity |
24pcs |
24pcs |
36pcs |
54pcs |
54pcs |
|
Rated Power |
30W |
40W |
60W |
90W |
120W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Light Color |
3000/4000K |
3000/4000K |
3000/4000K |
3000/4000K |
3000/4000K |
|
Luminous Flux |
3236/3480 Im |
4129/4440 lm |
6361/6840 lm |
9709/10440 Im |
12276/13200 Im |
|
Power Factor |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
|
Installation Height |
4-6m |
5-7m |
6-8m |
6-8m |
8-10m |
|
Installation Pipe Diameter |
Φ48/60mm |
Φ48/60mm |
Φ48/60mm |
Φ48/60mm |
Φ48/60mm |
|
Protection Grade |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
LED Lifetime |
>70000h |
>70000h |
>70000h |
>70000h |
>70000h |
|
Net Weight |
5.6kg |
5.6kg |
5.93kg |
5.93kg |
5.93kg |
|
Gross Weight |
6.75kg |
6.75kg |
7.08kg |
7.08kg |
7.08kg |
|
Packing Size |
721x371x195mm |
721x371x195mm |
721x371x195mm |
721x371x195mm |
721x371x195mm |

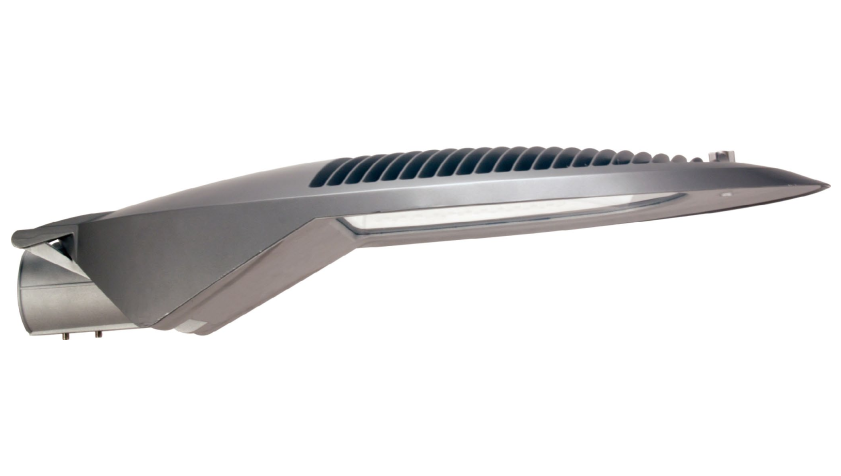

LXA2-L LED Street Light
LXA2-L
- Excellent heat dissipation, LED street light products with optical and electrical performance.
- Die-casting aluminum lamp body with surface electrostatic spray and anti-corrosion treatment.
- Diffuser uses 4.00 mm super white toughened glass.
- Humanized design concept, easy installation and maintenance.

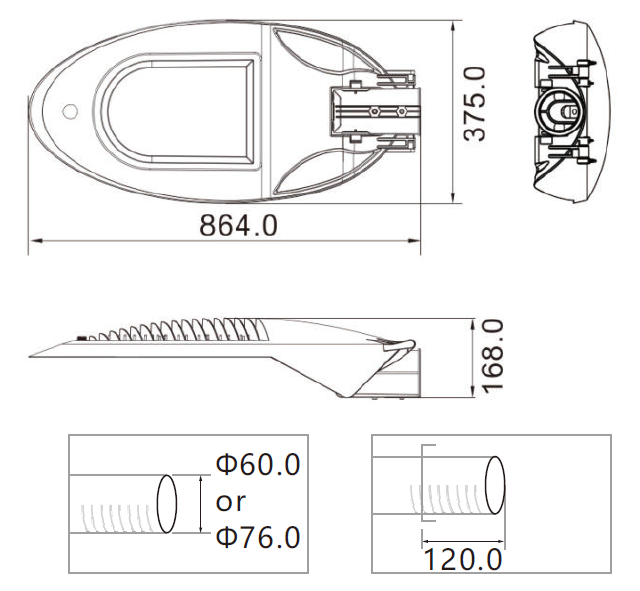

Product Dimension
Product Specification
| Product Name | LXA2-L-160 | LXA2-L-200 | LXA2-L-240 | LXA2-L-280 | LXA2-L-320 |
|---|---|---|---|---|---|
|
LED Quantity |
96pcs |
96pcs |
112pcs |
128pcs |
128pcs |
|
Rated Power |
160W |
200W |
240W |
280W |
320W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Light Color |
3000/4000K |
3000/4000K |
3000/4000K |
3000/4000K |
3000/4000K |
|
Luminous Flux |
17558/18880 Im |
20832/22400 Im |
24998/26880 Im |
28644/30800 Im |
32140/34560 Im |
|
Power Factor |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
|
Installation Height |
8-10m |
8-10m |
8-10m |
8-10m |
8-10m |
|
Installation Pipe Diameter |
Φ60/76mm |
Φ60/76mm |
Φ60/76mm |
Φ60/76mm |
Φ60/76mm |
|
Protection Grade |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
LED Lifetime |
>70000h |
>70000h |
>70000h |
>70000h |
>70000h |
|
Net Weight |
10.93kg |
10.93kg |
10.93kg |
10.93kg |
10.93kg |
|
Gross Weight |
12.93kg |
12.93kg |
12.93kg |
12.93kg |
12.93kg |
|
Packing Size |
1005X433X245mm |
1005X433X245mm |
1005X433X245mm |
1005X433X245mm |
1005X433X245mm |
