LXF3 LED Projector Light

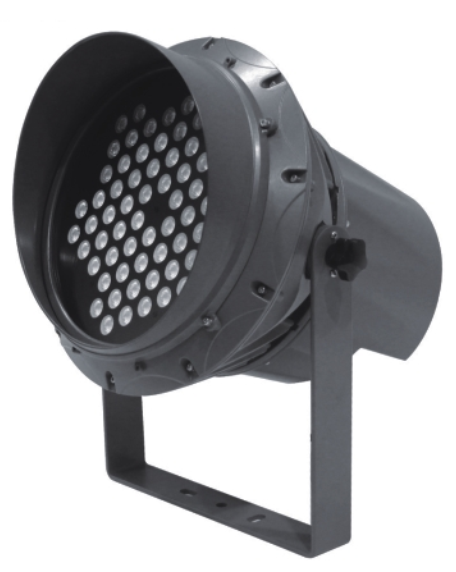

LXF3-XXL
- Creative design, to make a top-level LED projector light. Fashion and modern appearance design, to make the lamp to be an artwork, and perfect combined with the environment.
- The lamp body is using high strength die-casting aluminum, and high intensity tempered glass, anti-impact, and abrasion resistant. Optional accessories, such as visor.
- Powerful features, highly controllable, 12 kinds of dynamic program built-in, have creative logarithmic dimming and light mixing technic, to mixing the light in the distance less than 1m, bring soft and gorgeous light.
Product Dimension
Product Specification
| Product Name | LXF3-XXL-200H | LXF3-XXL-200H-C |
|---|---|---|
|
LED Quantity |
72pcs |
72pcs |
|
Rated Power |
200W |
180W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Control Mode |
ON-OFF |
DMX512 |
|
Light Color |
4000K |
RGBW |
|
Luminous Flux |
14976 lm |
7906 lm |
|
Power Factor |
>0.9 |
>0.9 |
|
CRI |
>80 |
W>80 |
|
Protection Grade |
IP66 |
IP66 |
|
LED Lifetime |
>50000h |
>50000h |
|
Net Weight |
13kg |
13kg |
|
Gross Weight |
14kg |
14kg |
|
Packing Size |
415x425x540mm |
415x425x540mm |
LXF3 LED Projector Light

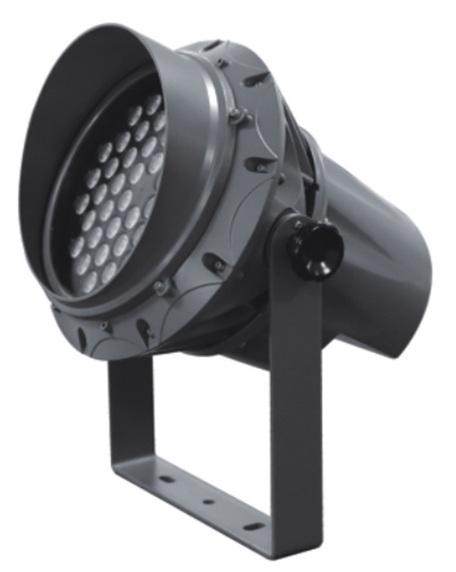

LXF3-XL
- Creative design, to make a top-level LED projector light. Fashion and modern appearance design, to make the lamp to be an artwork, and perfect combined with the environment.
- The lamp body is using high strength die-casting aluminum, and high intensity tempered glass, anti-impact, and abrasion resistant. Optional accessories, such as visor.
- Powerful features, highly controllable, 12 kinds of dynamic program built-in, have creative logarithmic dimming and light mixing technic, to mixing the light in the distance less than 1m, bring soft and gorgeous light.
Product Dimension
Product Specification
| Product Name | LXF3-XL-120H | LXF3-XL-120H-C |
|---|---|---|
|
LED Quantity |
54pcs |
54pcs |
|
Rated Power |
120W |
120W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Control Mode |
ON-OFF |
DMX512 |
|
Light Color |
4000K |
RGBW |
|
Luminous Flux |
9396 lm |
5016 lm |
|
Power Factor |
>0.9 |
>0.9 |
|
CRI |
>80 |
W>80 |
|
Protection Grade |
IP66 |
IP66 |
|
LED Lifetime |
>50000h |
>50000h |
|
Net Weight |
10.1kg |
10.1kg |
|
Gross Weight |
10.8kg |
10.8kg |
|
Packing Size |
365x380x495mm |
365x380x495mm |
LXF3 LED Projector Light

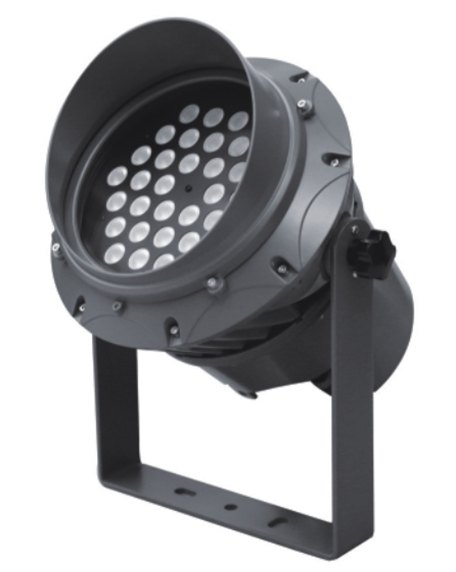

LXF3-L
- Creative design, to make a top-level LED projector light. Fashion and modern appearance design, to make the lamp to be an artwork, and perfect combined with the environment.
- The lamp body is using high strength die-casting aluminum, and high intensity tempered glass, anti-impact, and abrasion resistant. Optional accessories, such as visor.
- Powerful features, highly controllable, 12 kinds of dynamic program built-in, have creative logarithmic dimming and light mixing technic, to mixing the light in the distance less than 1m, bring soft and gorgeous light.
Product Dimension
Product Specification
| Product Name | LXF3-L-80H | LXF3-L-80H-C |
|---|---|---|
|
LED Quantity |
36pcs |
36pcs |
|
Rated Power |
80W |
84W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Control Mode |
ON-OFF |
DMX512 |
|
Light Color |
4000K |
RGBW |
|
Luminous Flux |
6264 lm |
3480 lm |
|
Power Factor |
>0.9 |
>0.9 |
|
CRI |
>80 |
W>80 |
|
Protection Grade |
IP66 |
IP66 |
|
LED Lifetime |
>50000h |
>50000h |
|
Net Weight |
8kg |
8kg |
|
Gross Weight |
8.55kg |
8.55kg |
|
Packing Size |
345x375x470mm |
345x375x470mm |
LXF3 LED Projector Light

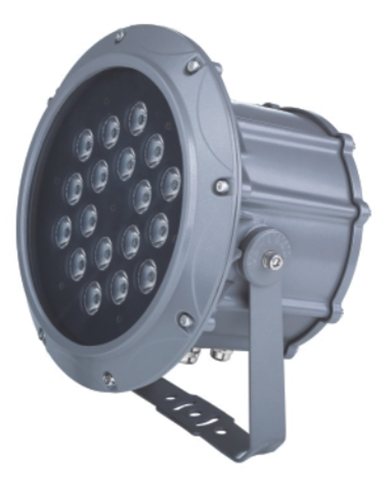

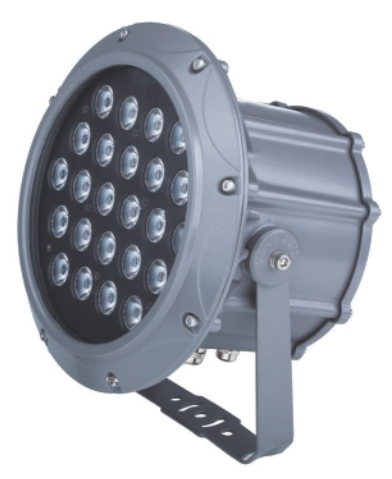

LXF3-M
- Creative design, to make a top-level LED projector light. Fashion and modern appearance design, to make the lamp to be an artwork, and perfect combined with the environment.
- The lamp body is using high strength die-casting aluminum, and high intensity tempered glass, anti-impact, and abrasion resistant. Optional accessories, such as visor.
- Powerful features, highly controllable, 12 kinds of dynamic program built-in, have creative logarithmic dimming and light mixing technic, to mixing the light in the distance less than 1m, bring soft and gorgeous light.
Product Dimension
Product Specification
| Product Name | LXF3-M-60 | LXF3-M-60-C |
|---|---|---|
|
LED Quantity |
24pcs |
24pcs |
|
Rated Power |
60W |
60W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Control Mode |
ON-OFF |
DMX512 |
|
Light Color |
4000K |
RGBW |
|
Luminous Flux |
4470 lm |
1870 lm |
|
Power Factor |
>0.9 |
>0.9 |
|
CRI |
>80 |
W>80 |
|
Protection Grade |
IP66 |
IP66 |
|
LED Lifetime |
>50000h |
>50000h |
|
Net Weight |
3.75kg |
3.75kg |
|
Gross Weight |
4.1kg |
4.1kg |
|
Packing Size |
540x320x550mm/4pcs |
540x320x550mm/4pcs |
| Product Name | LXF3-M-40 | LXF3-M-40-C |
|---|---|---|
|
LED Quantity |
18pcs |
18pcs |
|
Rated Power |
42W |
42W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Control Mode |
ON-OFF |
DMX512 |
|
Light Color |
4000K |
RGBW |
|
Luminous Flux |
3132 lm |
1354 lm |
|
Power Factor |
>0.9 |
>0.9 |
|
CRI |
>80 |
W>80 |
|
Protection Grade |
IP66 |
IP66 |
|
LED Lifetime |
>50000h |
>50000h |
|
Net Weight |
2.02kg |
2.02kg |
|
Gross Weight |
2.25kg |
2.25kg |
|
Packing Size |
540x320x550mm/4pcs |
540x320x550mm/4pcs |

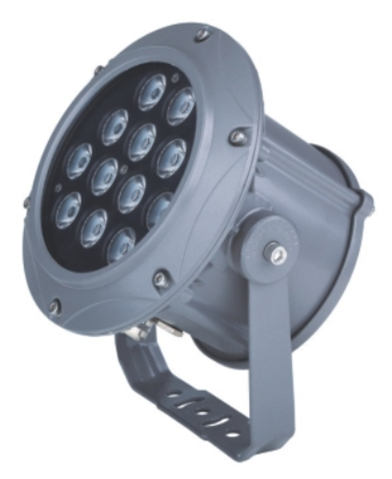

LXF3 LED Projector Light

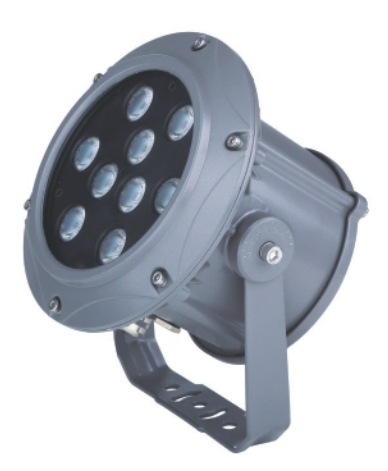

LXF3-S
- Creative design, to make a top-level LED projector light. Fashion and modern appearance design, to make the lamp to be an artwork, and perfect combined with the environment.
- The lamp body is using high strength die-casting aluminum, and high intensity tempered glass, anti-impact, and abrasion resistant. Optional accessories, such as visor.
- Powerful features, highly controllable, 12 kinds of dynamic program built-in, have creative logarithmic dimming and light mixing technic, to mixing the light in the distance less than 1m, bring soft and gorgeous light.
Product Dimension
Product Specification
| Product Name | LXF3-S-30 | LXF3-S-30-C |
|---|---|---|
|
LED Quantity |
12pcs |
12pcs |
|
Rated Power |
28W |
30W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Control Mode |
ON-OFF |
DMX512 |
|
Light Color |
4000K |
RGBW |
|
Luminous Flux |
2088 lm |
1160 lm |
|
Power Factor |
>0.9 |
>0.9 |
|
CRI |
>80 |
W>80 |
|
Protection Grade |
IP66 |
IP66 |
|
LED Lifetime |
>50000h |
>50000h |
|
Net Weight |
2.02kg |
2.02kg |
|
Gross Weight |
2.22kg |
2.22kg |
|
Packing Size |
500x530x450mm/8pcs |
500x530x450mm/8pcs |
| Product Name | LXF3-S-20 | LXF3-S-20-C |
|---|---|---|
|
LED Quantity |
9pcs |
9pcs |
|
Rated Power |
22W |
23W |
|
Input Voltage |
AC100-277V 50/60Hz |
AC100-277V 50/60Hz |
|
Control Mode |
ON-OFF |
DMX512 |
|
Light Color |
4000K |
RGB |
|
Luminous Flux |
1566 lm |
705 lm |
|
Power Factor |
>0.9 |
>0.9 |
|
CRI |
>80 |
- |
|
Protection Grade |
IP66 |
IP66 |
|
LED Lifetime |
>50000h |
>50000h |
|
Net Weight |
1.92kg |
1.92kg |
|
Gross Weight |
2.12kg |
2.12kg |
|
Packing Size |
500x530x450mm/8pcs |
500x530x450mm/8pcs |
LXF3 LED Projector Light

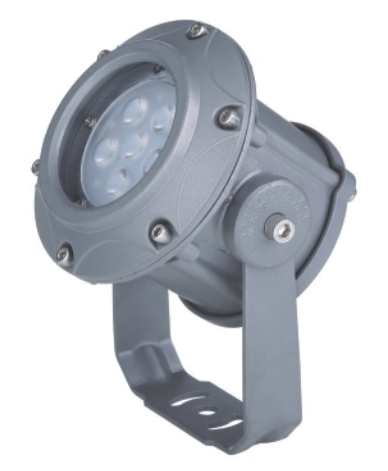

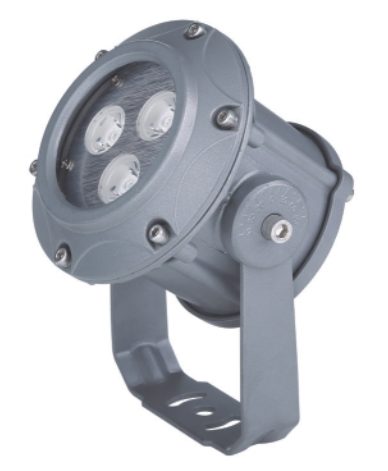

LXF3-XS
- Creative design, to make a top-level LED projector light. Fashion and modern appearance design, to make the lamp to be an artwork, and perfect combined with the environment.
- The lamp body is using high strength die-casting aluminum, and high intensity tempered glass, anti-impact, and abrasion resistant. Optional accessories, such as visor.
- Powerful features, highly controllable, 12 kinds of dynamic program built-in, have creative logarithmic dimming and light mixing technic, to mixing the light in the distance less than 1m, bring soft and gorgeous light.
Product Dimension
Product Specification
| Product Name | LXF3-XS-14 | LXF3-XS-14-C |
|---|---|---|
|
LED Quantity |
6pcs |
6pcs |
|
Rated Power |
13W |
14W |
|
Input Voltage |
DC24V 50/60Hz |
DC24V 50/60Hz |
|
Control Mode |
ON-OFF |
DMX512 |
|
Light Color |
4000K |
RGB |
|
Luminous Flux |
1044 lm |
470 lm |
|
Power Factor |
>0.9 |
>0.9 |
|
CRI |
>80 |
- |
|
Protection Grade |
IP66 |
IP66 |
|
LED Lifetime |
>50000h |
>50000h |
|
Net Weight |
0.92kg |
0.92kg |
|
Gross Weight |
1.05kg |
1.05kg |
|
Packing Size |
470x430x375mm/12pcs |
470x430x375mm/12pcs |
| Product Name | LXF3-XS-8 | LXF3-XS-8-C |
|---|---|---|
|
LED Quantity |
3pcs |
3pcs |
|
Rated Power |
8W |
8W |
|
Input Voltage |
DC24V 50/60Hz |
DC24V 50/60Hz |
|
Control Mode |
ON-OFF |
DMX512 |
|
Light Color |
4000K |
RGB |
|
Luminous Flux |
610 lm |
268 lm |
|
CRI |
>80 |
- |
|
Protection Grade |
IP66 |
IP66 |
|
LED Lifetime |
>50000h |
>50000h |
|
Net Weight |
0.92kg |
0.92kg |
|
Gross Weight |
1.05kg |
1.05kg |
|
Packing Size |
470x430x375mm/12pcs |
470x430x375mm/12pcs |
